C/Z Purlins

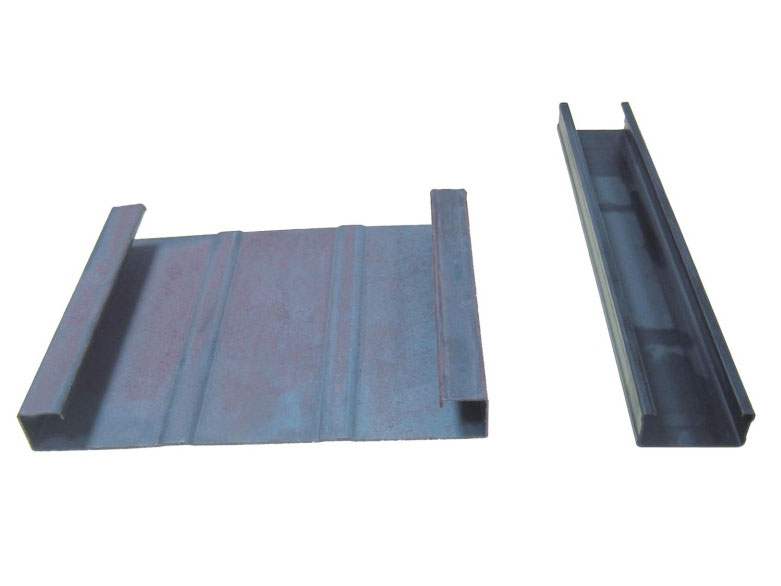

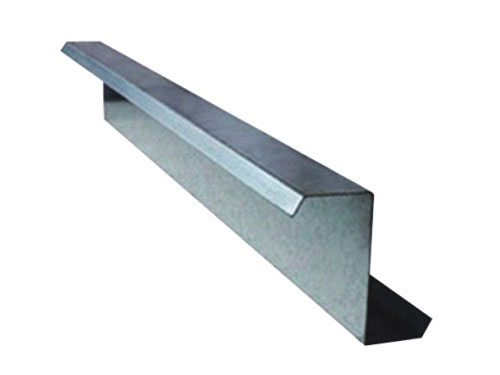

GZ Roll-Forming provides roll forming lines for C/Z purlins. Cold roll formed purlins are light and durable, allowing the weight of a roof to be reduced by also reducing the amount of steel used. CZ purlins are an economical, efficient and durable construction material, making them an ideal substitute for traditional angle, channel, and pipe steel purlins.

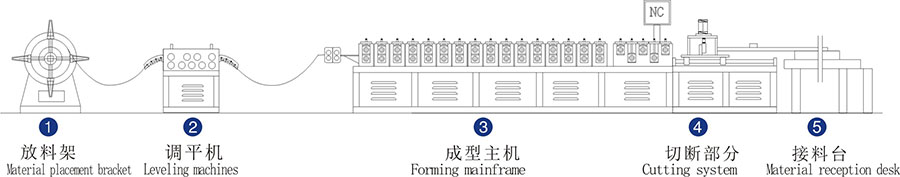

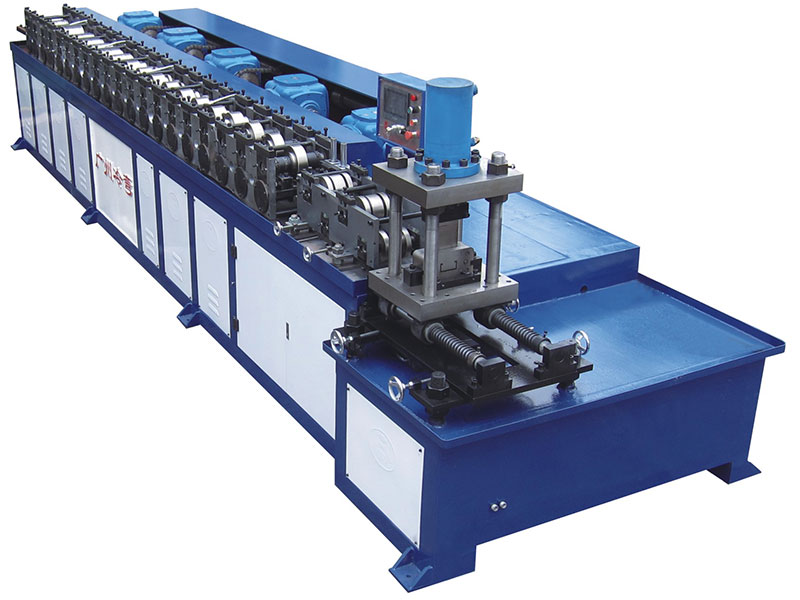

The C/Z purlin roll forming line is customized according to a customer’s profile requirements and is fully automatic.
Production specifications and output are easy to set on the touch screen, while an HMI requiring no mechanical adjustments ensures an easy operation. The PLC, inverter and other electrical components use trusted materials produced in Germany or Japan to ensure the long-term roll-forming line performance.
| Forming material | 1.5-3mm cold/hot-rolled metal strip |

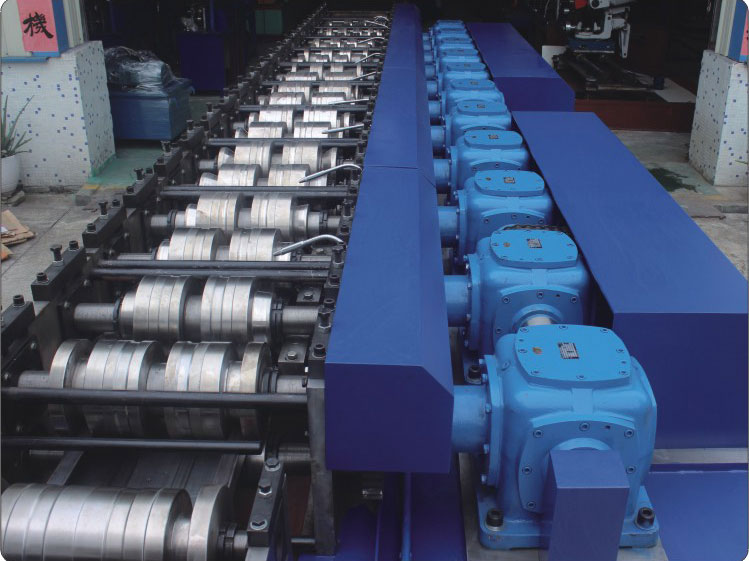

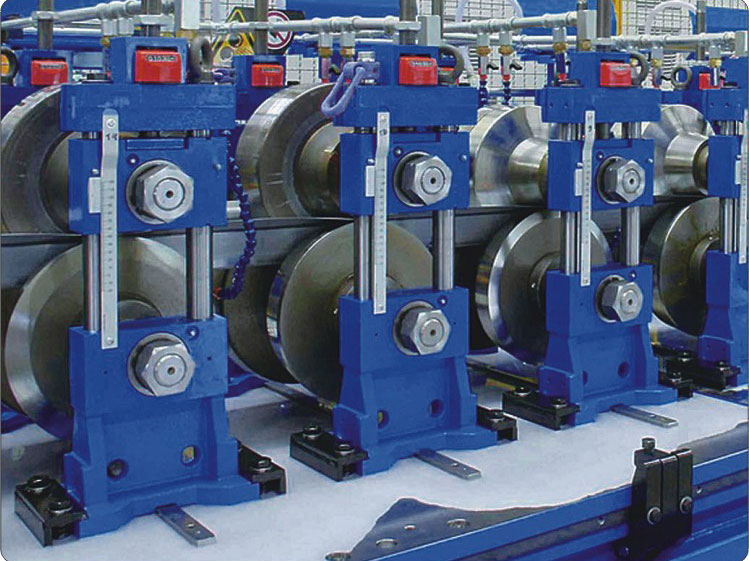

| Forming passes | 12-20 |
| Production speed | 6~15m/min |

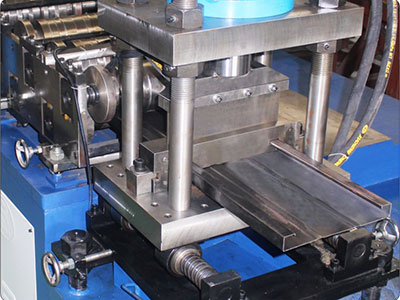

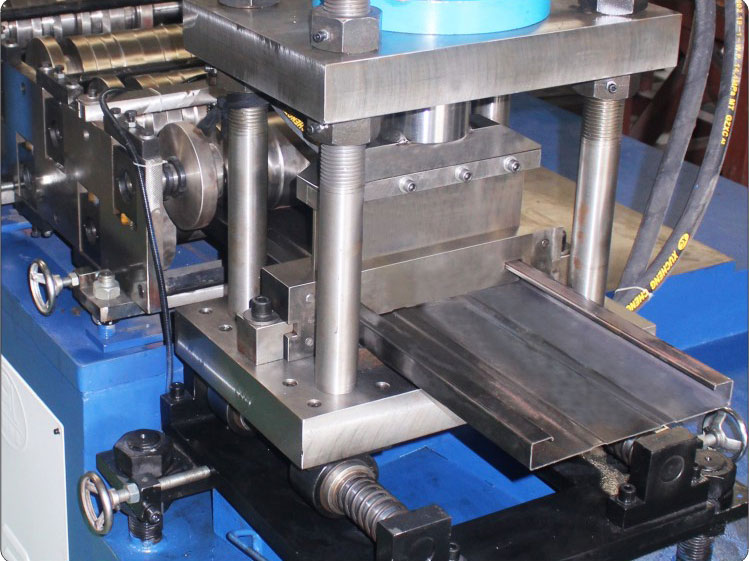

| Cut off | Hydraulic/saw/grinding wheel/pneumatic (selectable upon request) |
| Processing quality | Straightness: L≤2000mm, curvature≤2mm; deflection≤2º No surface wrinkles, bumps, scratches or other defects Cross-section size and hole position meet customer’s requirements or national standards |
| Remark: Custom design is available according to client’s actual requirements. The data listed above is only for reference. | |
We are highly specialized in manufacturing custom roll forming lines that conform to your demanding requests in steel construction industry. Our custom designed metal forming equipment can implement the process of typical shaped steel section fabrication and complex profile roll forming for various applications across construction, furniture, industrial and agricultural industries. Our expert engineering team has been in the field of structural steel manufacturing for a long term, they are committed to develop and custom engineering roll formers to fit your strict requirements.
