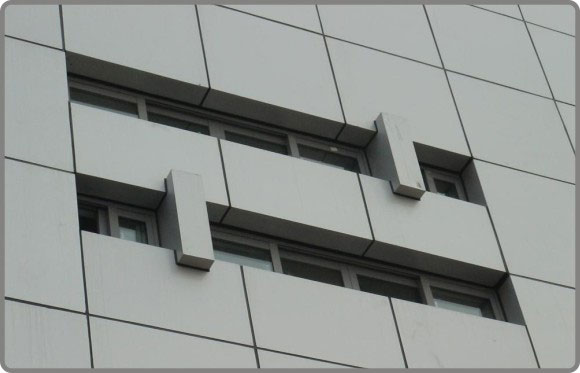

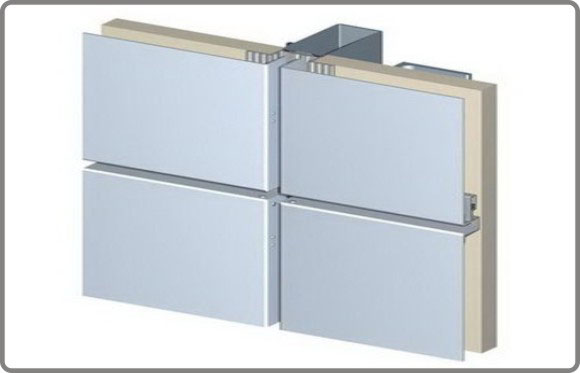

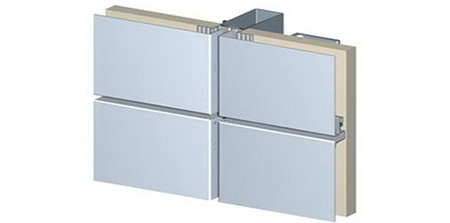

Curtain Wall Panel

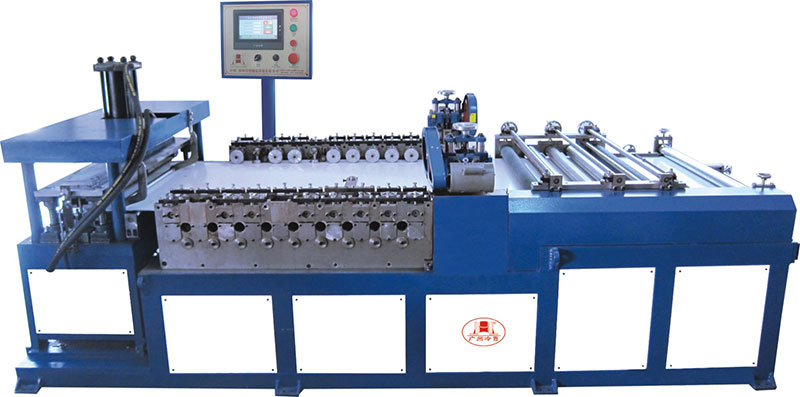

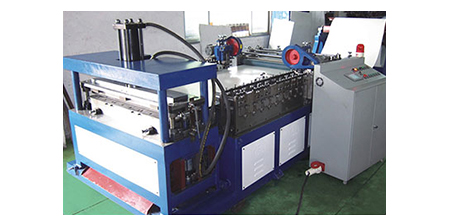

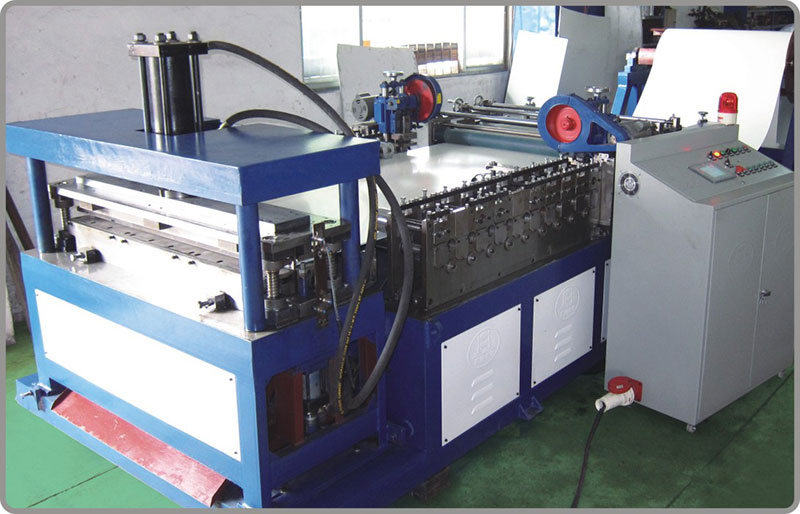

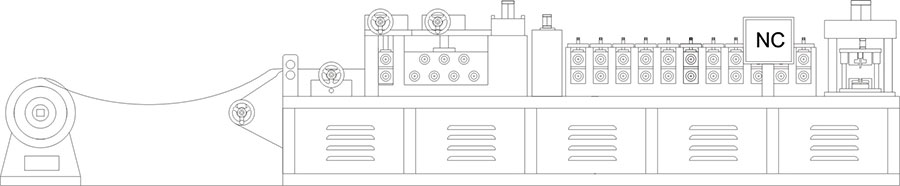

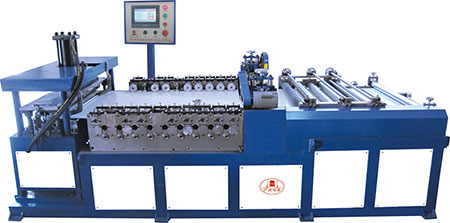

GZ Roll-Forming offers high quality roll-forming lines with a fully automatic control system for curtain wall panels. Punching, slotting and other function are integrated in-line, meaning there is no need for secondary operations. Other devices can also be equipped upon request to carry out laminating, bending, or discharging.
The product shape, output and other parameters are all set on the touch screen while HMI is achieved with no mechanical adjustments. The PLC, inverter, and other electrical components are imported from Germany and Japan to ensure the roll-forming system’s long-term performance.
| Forming material | 0.4- 1.8mm cold/hot-rolled and aluminum alloy metal strip |
| Forming passes | 8- 16 |
| Production speed | 6~15m/min |
| Cut off | Hydraulic cut-to-length |
| Processing quality | Straightness: L≤2000mm, curvature≤2mm; deflection≤2º No surface wrinkles, bumps, scratches or other defects Cross-section size and hole position meet customer’s requirements or national standards |
| Remark: Custom design is available according to client’s actual requirements. The data listed above is only for reference. | |
We are highly specialized in manufacturing custom roll forming lines that conform to your demanding requests in steel construction industry. Our custom designed metal forming equipment can implement the process of typical shaped steel section fabrication and complex profile roll forming for various applications across construction, furniture, industrial and agricultural industries. Our expert engineering team has been in the field of structural steel manufacturing for a long term, they are committed to develop and custom engineering roll formers to fit your strict requirements.
