Highway Guardrail

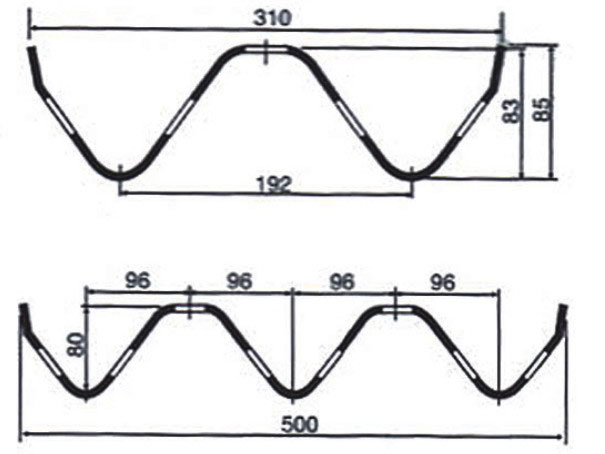

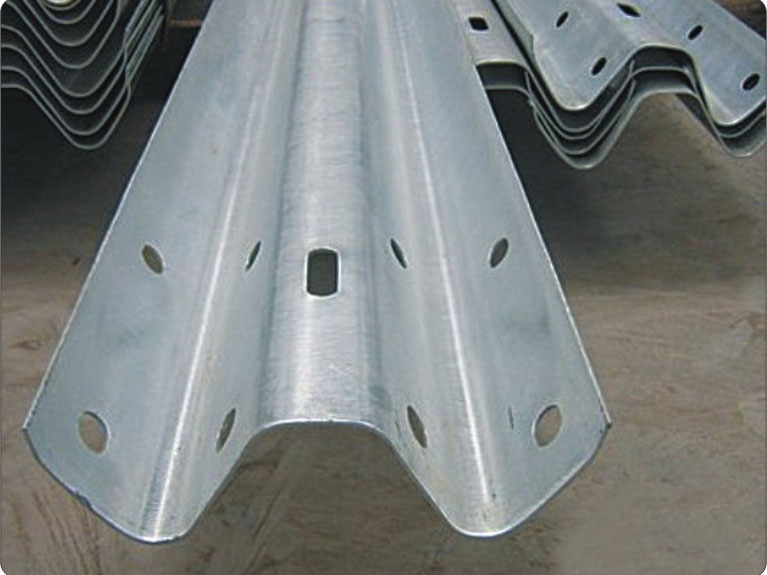

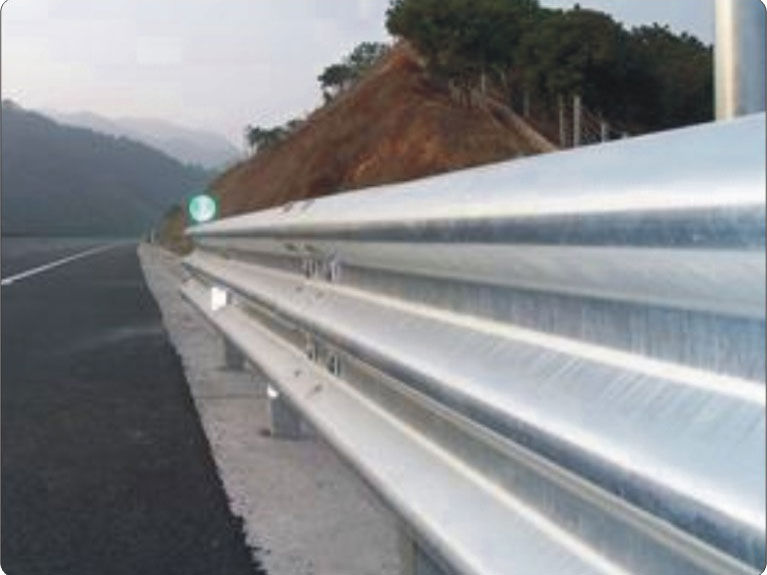

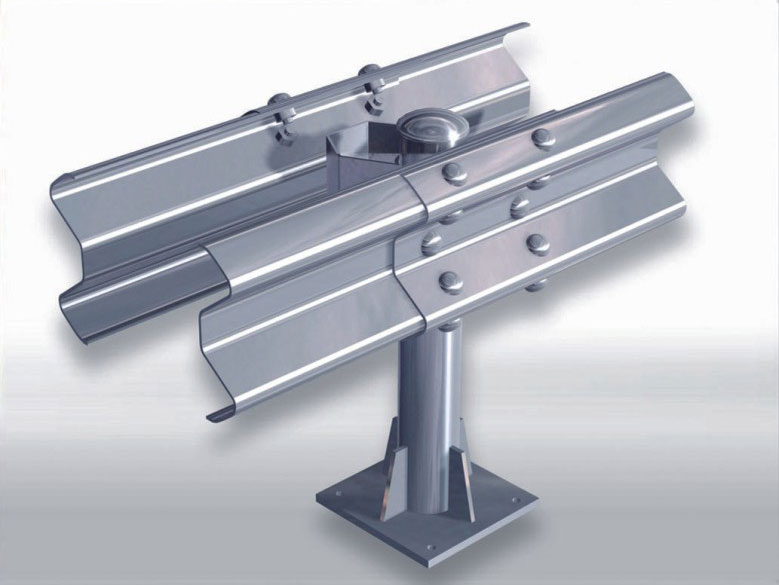

GZ Roll-Forming provides flexible roll-forming lines for highway guardrails and safety barriers. 2 or 3-wave guiderails are available to suit your production needs.

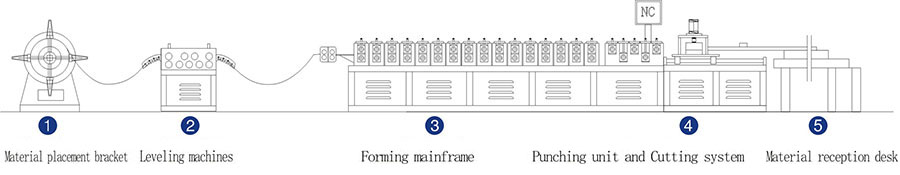

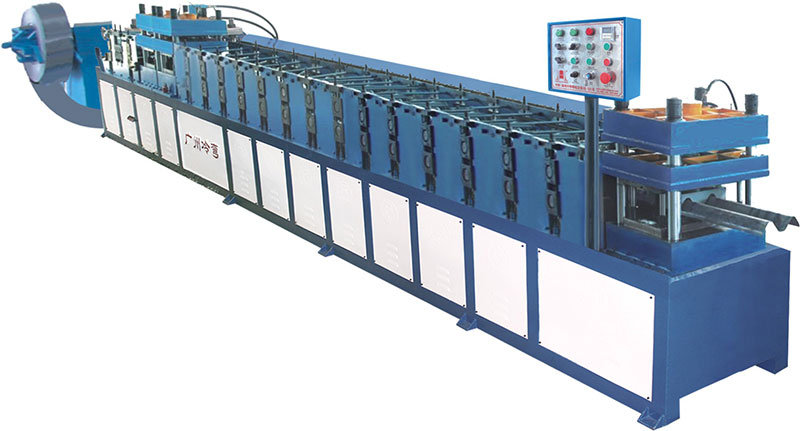

The roll-forming line includes the feeder, levelling device, roll forming machine, punching and cutting mechanism, hydraulic system, control system and stacker. Fully automatic control allows operators to produce products in different lengths. HMI requires no mechanical adjustment, while the main electrical components, including the PLC and inverter are imported from prominent German and Japanese brands to ensure the long-term performance.
| Forming material | 1.8-3mm cold/hot-rolled metal strip, galvanized plate |
| Production speed | 6~15m/min |
| Cut off | Hydraulic cut-to-length |
| Processing quality | Straightness: L≤2000mm, curvature≤2mm; deflection≤2º No surface wrinkles, bumps, scratches or other defects Cross-section size and hole position meet customer’s requirements or national standards |
| Custom design is available according to client’s actual requirements. The data listed above is only for reference. | |
We are highly specialized in manufacturing custom roll forming lines that conform to your demanding requests in steel construction industry. Our custom designed metal forming equipment can implement the process of typical shaped steel section fabrication and complex profile roll forming for various applications across construction, furniture, industrial and agricultural industries. Our expert engineering team has been in the field of structural steel manufacturing for a long term, they are committed to develop and custom engineering roll formers to fit your strict requirements.
