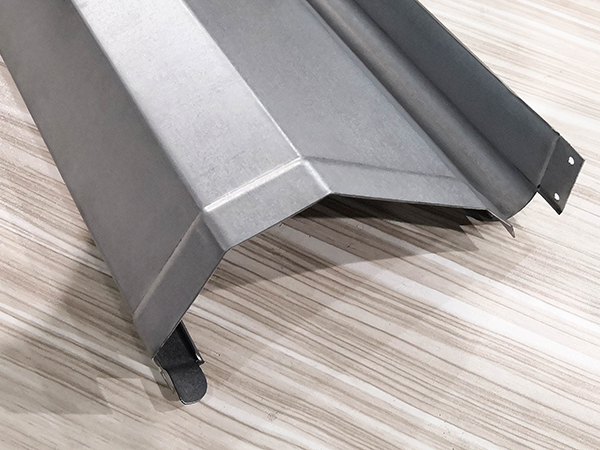

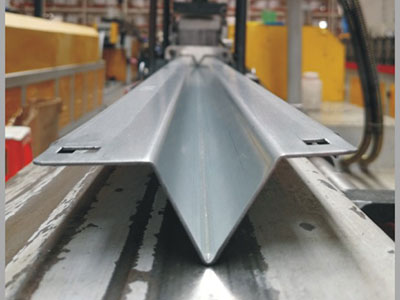

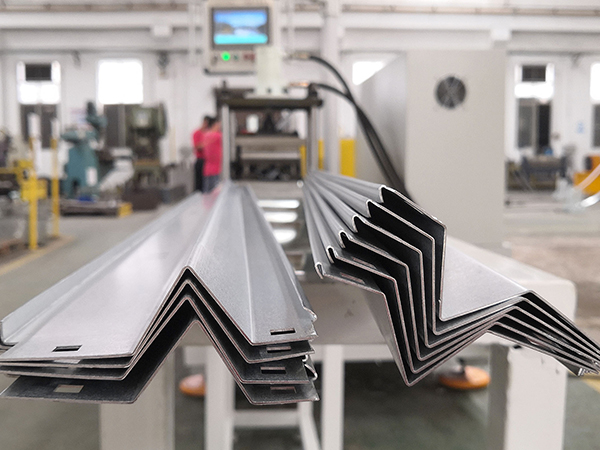

Animal Husbandry Products

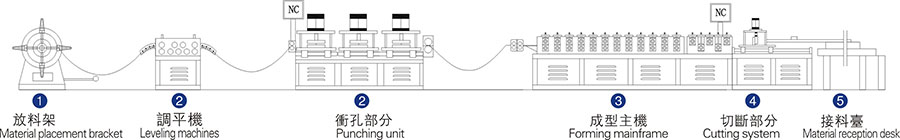

The Animal Husbandry Products consists of the material feeder, levelling mechanism, punching device, roll forming machine and cutting device.

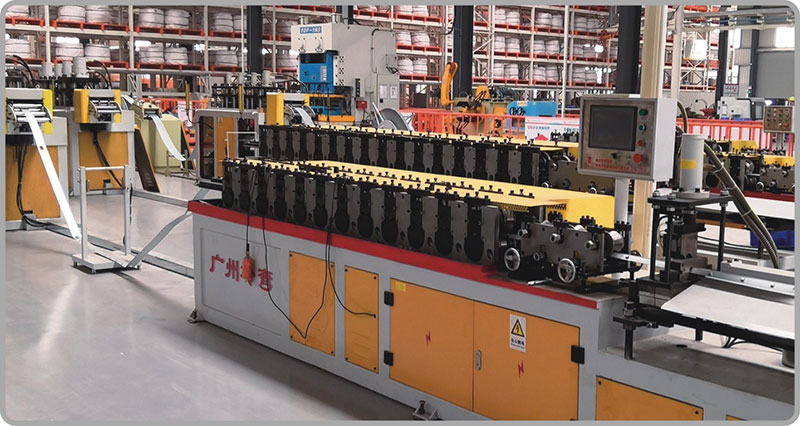

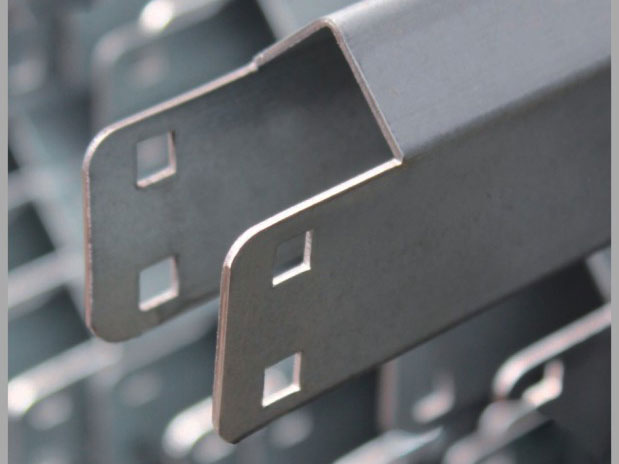

Punching, slotting and other functions can be integrated in-line, with no need for secondary operations. The fully automatic roll-forming line is used to manufacture products in a variety of specifications. The product shape, output and parameters are set via the touch screen, while the HMI requires no mechanical adjustment, thus easing operations. The PLC, inverter and other electrical components are imported from German and Japanese suppliers, ensuring long-term performance.
| Forming material | 0.4-3mm cold/hot-rolled, galvanized and aluminized and stainless steel metal strip |
| Forming passes | 10-36 |
| Production speed | 6~15m/min |
| Cut off | Hydraulic/saw/wheel/ pneumatic (selectable upon request) |

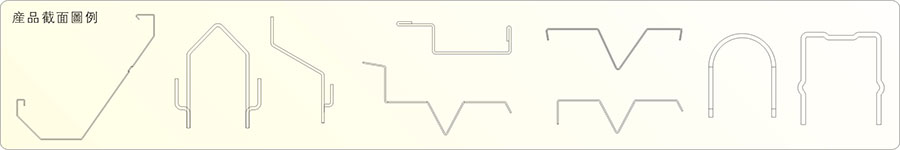

| Processing quality | Straightness: L≤2000mm, curvature≤2mm; deflection≤2º No surface wrinkles, bumps, scratches or other defects Cross-section size and hole position meet customer’s requirements or national standards |
| Remark: Custom design is available according to client’s actual requirements. The data listed above is only for reference. | |
We are highly specialized in manufacturing custom roll forming lines that conform to your demanding requests in steel construction industry. Our custom designed metal forming equipment can implement the process of typical shaped steel section fabrication and complex profile roll forming for various applications across construction, furniture, industrial and agricultural industries. Our expert engineering team has been in the field of structural steel manufacturing for a long term, they are committed to develop and custom engineering roll formers to fit your strict requirements.
