Upright for Electrical Cabinets

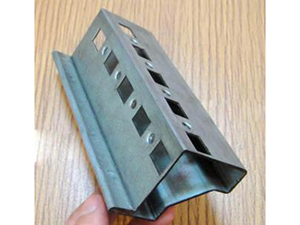

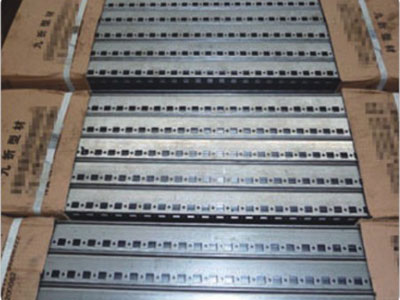

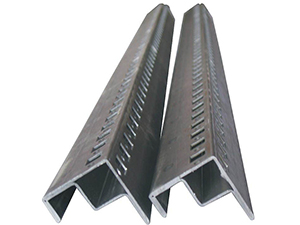

The roll forming system is designed for the production of diagonal braces and uprights in electrical cabinets and network cabinets.

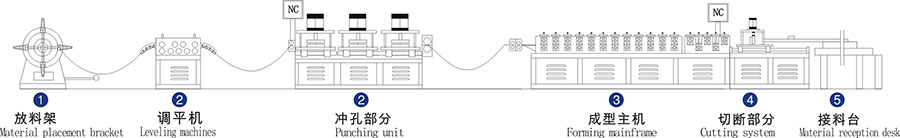

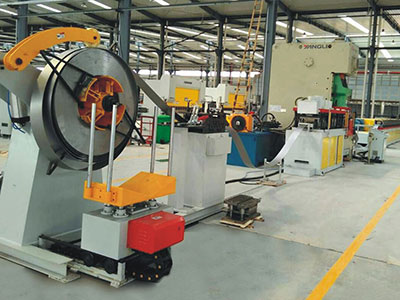

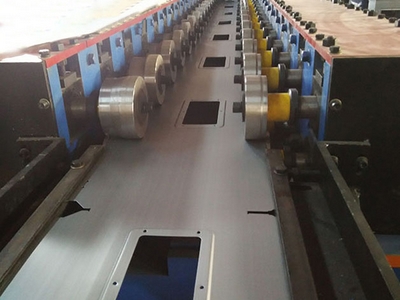

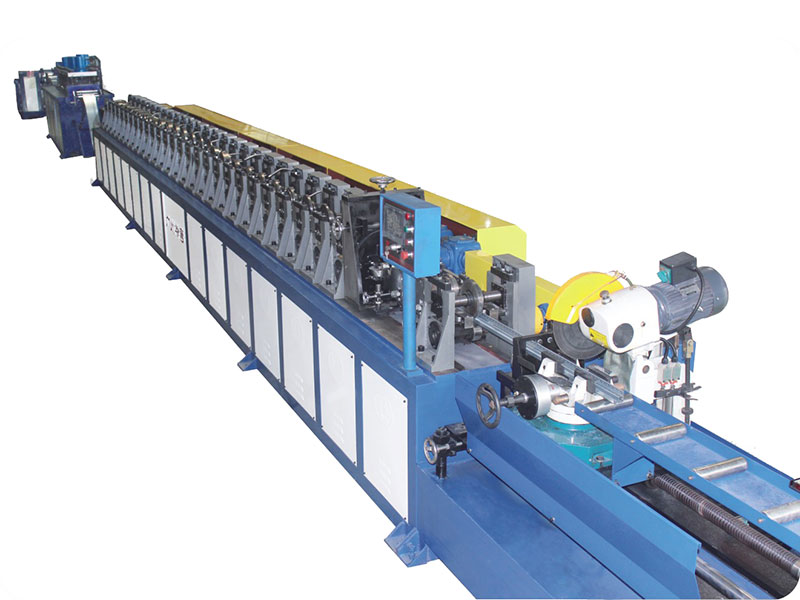

The roll forming line consists of the material loader, leveling mechanism, multi-station punch press, roll forming machine, cut-off saw mechanism, hydraulic system, control system and finished product stacker.
| Forming material | 1.5mm cold/hot-rolled metal strip |
| Forming passes | 24-36 |
| Production speed | 6~12m/min |
| Cut off | Hydraulic/saw (selectable upon request) |

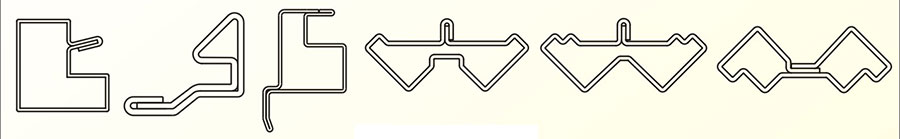

| Processing quality | Straightness: L≤2000mm, curvature≤2mm; deflection≤2º No surface wrinkles, bumps, scratches or other defects Cross-section size and hole position meet customer’s requirements or national standards |
| Remark: Custom design is available according to client’s actual requirements. The data listed above is only for reference. | |
We are highly specialized in manufacturing custom roll forming lines that conform to your demanding requests in steel construction industry. Our custom designed metal forming equipment can implement the process of typical shaped steel section fabrication and complex profile roll forming for various applications across construction, furniture, industrial and agricultural industries. Our expert engineering team has been in the field of structural steel manufacturing for a long term, they are committed to develop and custom engineering roll formers to fit your strict requirements.
