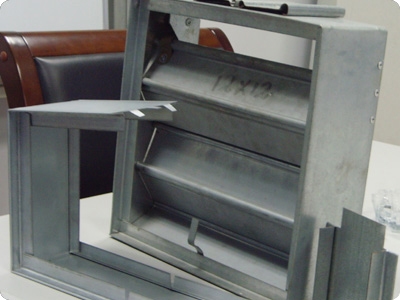

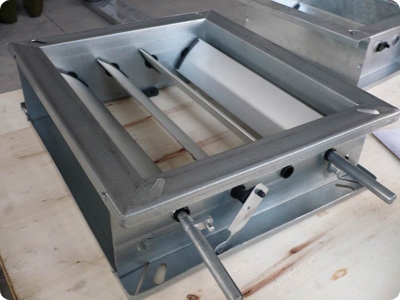

Fire Damper

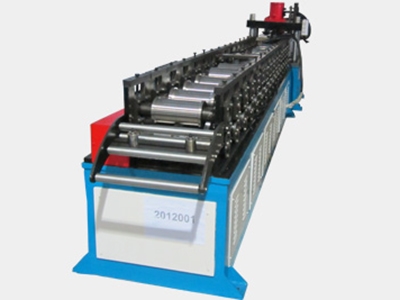

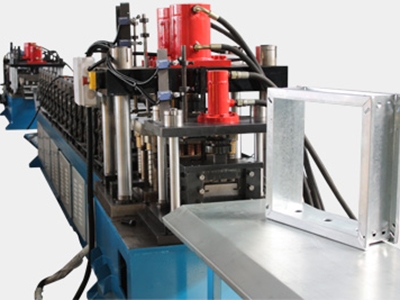

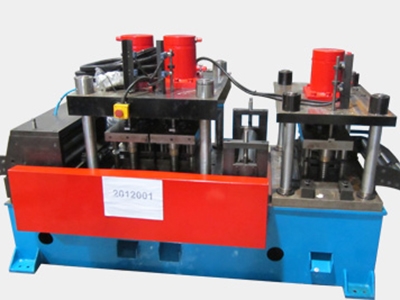

The fire damper production line combines multiple technologies of material feeding, hole punching, roll forming and cutting, mainly consisting of uncoiling system, punching system, roll forming system (welding technology), cutting system, electronic control system, etc.
| NO. | Item | Unit | Parameter | Remark | |
| 1 | Material | Type | galvanized sheet, mild steel, etc. | ||
| Strength of material sheet | Map | ≥350 | |||
| Thickness of material sheet | mm | 0.8~1.5 | customizable | ||
| 2 | Profile sizes | mm | See Figure | customizable | |
| 3 | Production speed | m/min | 2~6 | ||
| 4 | Material of roller | GCr15 quenching treatment | |||
| 5 | Drive type | Gearbox driven | |||
| 6 | Motor Power | kw | About 34 | ||
| 7 | Electric control system | PLC variable frequency control | |||
| 8 | Dimensions(Length*width*height) | m | 28X4X3.9 | ||
We are highly specialized in manufacturing custom roll forming lines that conform to your demanding requests in steel construction industry. Our custom designed metal forming equipment can implement the process of typical shaped steel section fabrication and complex profile roll forming for various applications across construction, furniture, industrial and agricultural industries. Our expert engineering team has been in the field of structural steel manufacturing for a long term, they are committed to develop and custom engineering roll formers to fit your strict requirements.
