Dishwasher Components

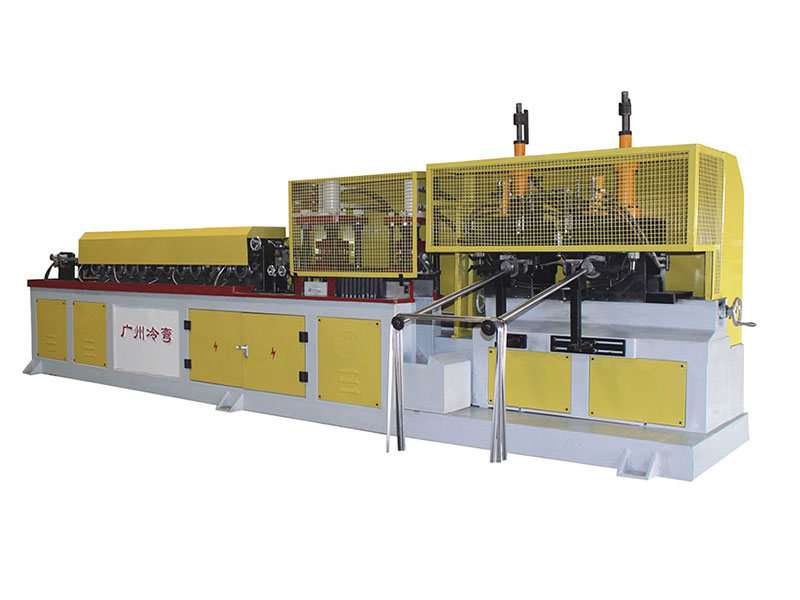

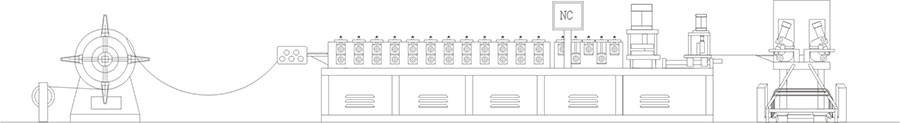

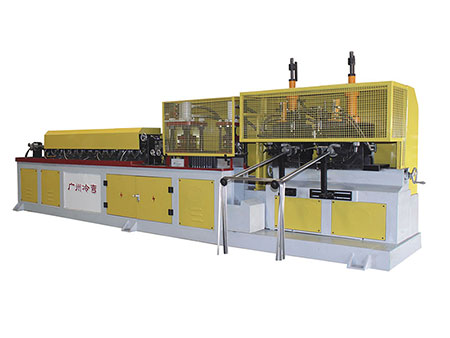

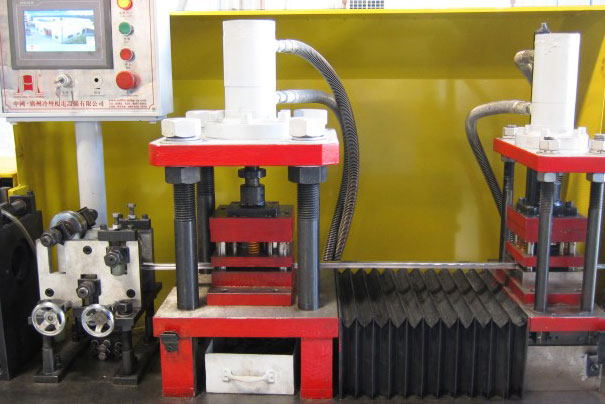

This roll forming line is used by Midea Group for manufacturing dishwasher components. It consists of a material loader, roll forming machine, notching press, cutting mechanism, bending mechanism and finished product stacker. The roll-forming line features fully automatic control, and products are easily manufactured in different specifications with easily adjustable product length and width. The product setting and production output are both easily set on the touch screen, while HMI ensures easy operation. The PLC, inverter and other electrical components are produced and imported from Germany and Japan, ensuring long-term stability and performance of the roll forming line.
| Forming material | 0.3-0.6mm stainless steel strip |
| Forming passes | 8-36 |
| Production speed | 4~6m/min |
| Cut off | Hydraulic cut-off |
| Processing quality | Straightness: L≤2000mm, curvature≤2mm; deflection≤2º No surface wrinkles, bumps, scratches or other defects Cross-section size and hole position meet customer’s requirements or national standards |
| Remark: Custom design is available according to client’s actual requirements. The data listed above is only for reference. | |
We are highly specialized in manufacturing custom roll forming lines that conform to your demanding requests in steel construction industry. Our custom designed metal forming equipment can implement the process of typical shaped steel section fabrication and complex profile roll forming for various applications across construction, furniture, industrial and agricultural industries. Our expert engineering team has been in the field of structural steel manufacturing for a long term, they are committed to develop and custom engineering roll formers to fit your strict requirements.
