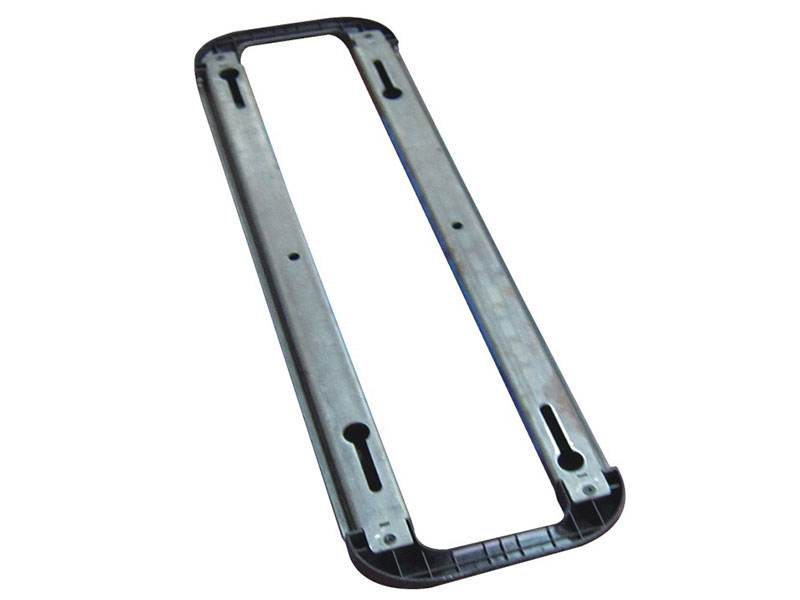

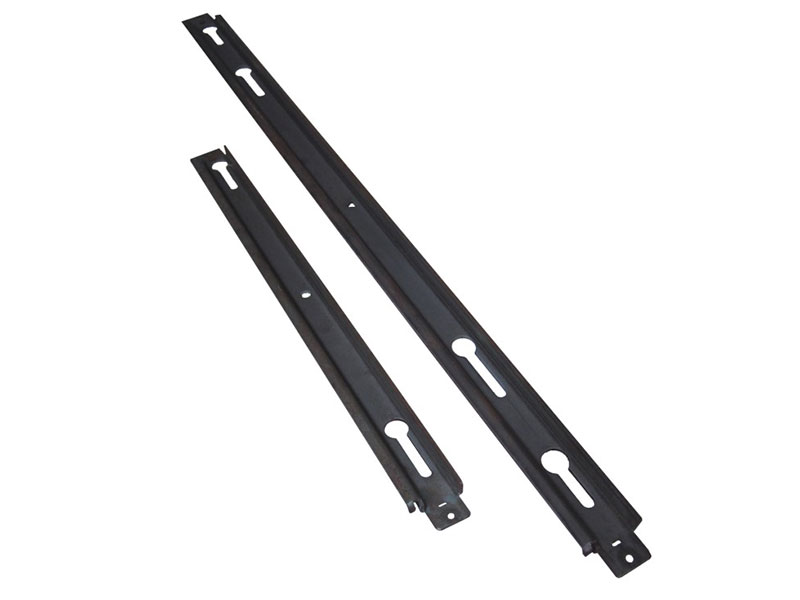

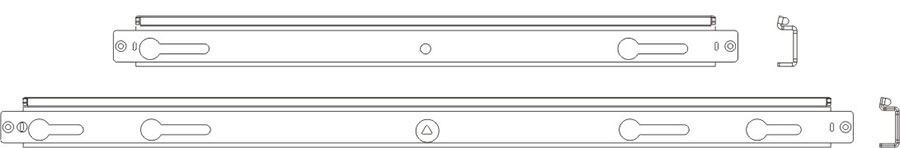

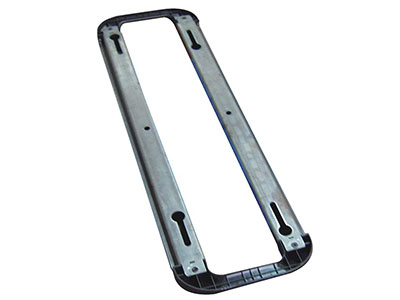

TV Screen Wall Mount Bracket

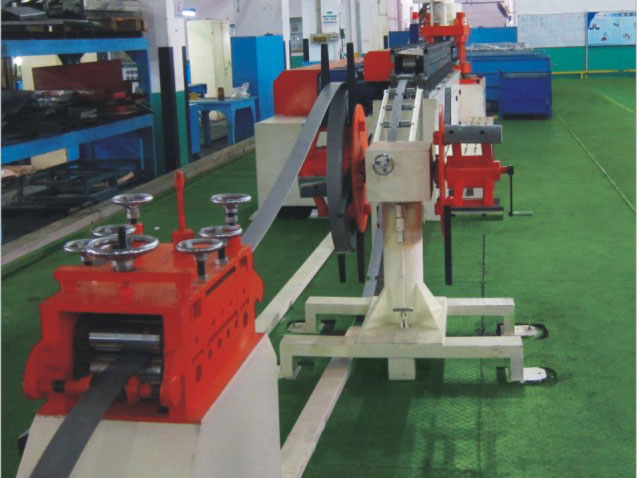

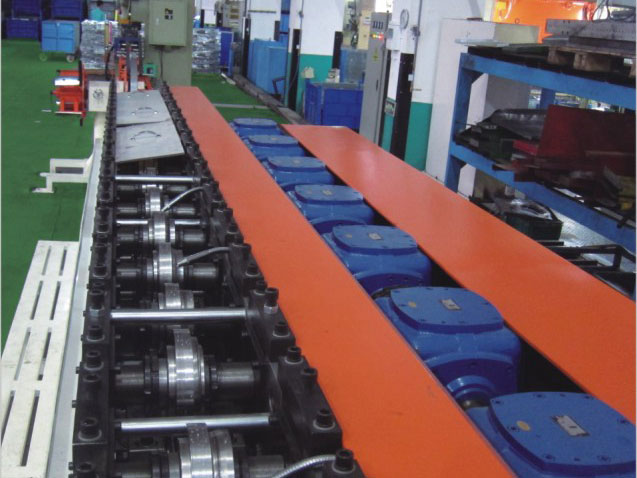

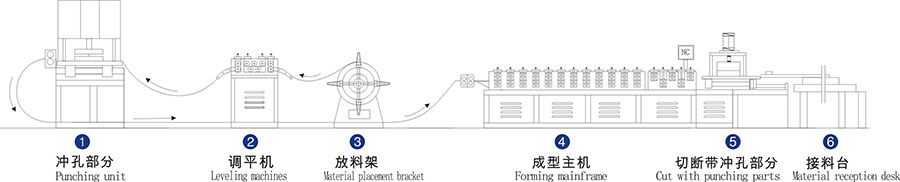

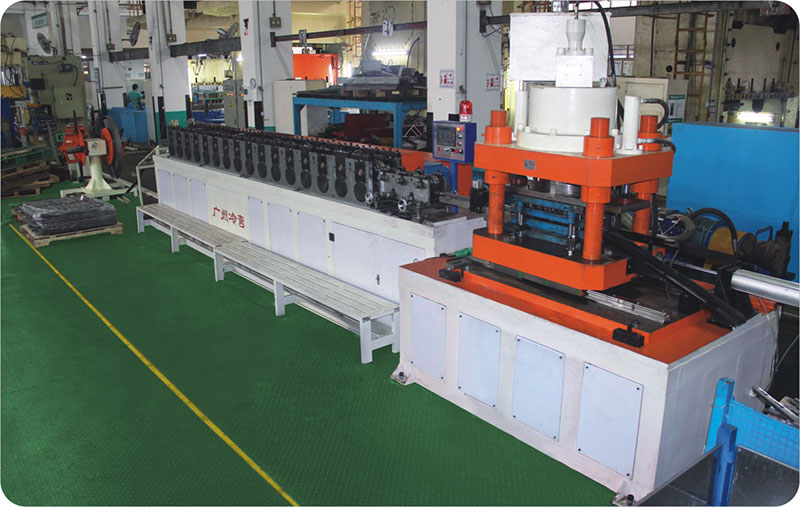

The roll forming system is widely used for wall mount brackets used for household appliances. The roll-forming line consists of the material loader, level adjustment mechanism, punch press, roll forming machine, cut-off and punch mechanism, hydraulic system, control system and stacker. Punching is performed in both the pre- and after- roll-forming process. The fully automatic control system only requires one person to operate the roll former. The wall panel is formed in just a single step, thus improving the productivity and reducing costs.
The product shape, output and other specifications are set on the touch screen. The HMI is easy to use, while the PLC, inverter and other electrical elements are imported from Germany and Japan to ensure long-term stability and performance of the roll-forming system.
| Forming material | 3mm cold/hot-rolled strip |
| Forming passes | 16 |
| Production speed | 6m/min |
| Cut off | Hydraulic cut-to-length |
| Processing quality | Straightness: L≤2000mm, curvature≤2mm; deflection≤2º No surface wrinkles, bumps, scratches or other defects Cross-section size and hole position meet customer’s requirements or national standards |
| Working environment | 380V±10%/50Hz, about 30KW |
| Remark: Custom design is available according to client’s actual requirements. The data listed above is only for reference. | |
We are highly specialized in manufacturing custom roll forming lines that conform to your demanding requests in steel construction industry. Our custom designed metal forming equipment can implement the process of typical shaped steel section fabrication and complex profile roll forming for various applications across construction, furniture, industrial and agricultural industries. Our expert engineering team has been in the field of structural steel manufacturing for a long term, they are committed to develop and custom engineering roll formers to fit your strict requirements.
