Pittsburgh Lock

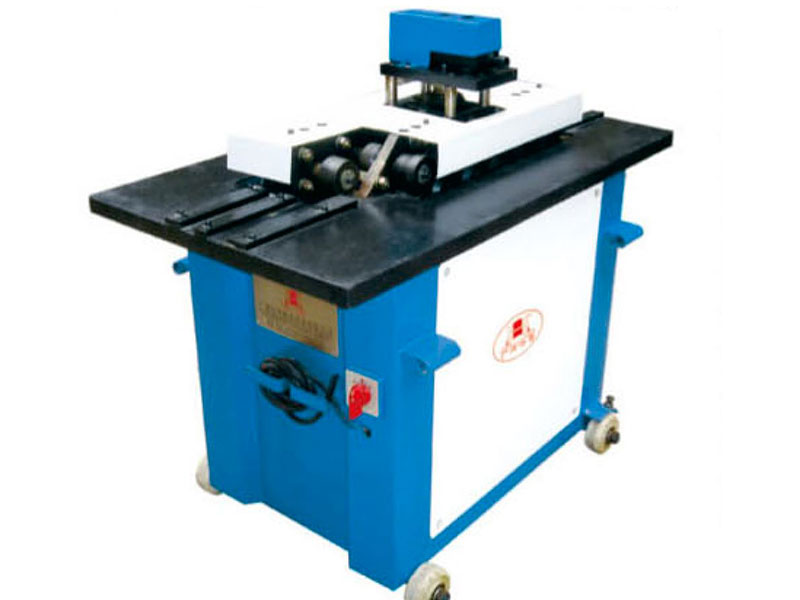

Pittsburgh Lock Roll-forming Machine

We supply Pittsburgh lock roll-forming machines in both standard and custom parameters. Standard machine tools allow for rolls that can be replaced or configured according to the table below. When placing an order, please mark the machine number.

Technical Parameters
  • Model: HYJ01
  • Power (KW): 1.5
  • Sheet thickness (mm):0.3-1.0
  • Weight (kg): 160
  • Dimensions(mm): 910*580* 900
  • Shape:
    • Pittsburgh Lock Roll-forming Machine
  • Model: HYJ02
  • Power (KW): 1.5
  • Sheet thickness (mm):0.3-1.0
  • Weight (kg): 160
  • Dimensions(mm): 910*580* 1100
  • Shape:
    • Pittsburgh Lock Roll-forming Machine
  • Model: HYJ03
  • Power (KW): 1.5
  • Sheet thickness (mm): 0.5-1.2
  • Weight (kg): 180
  • Dimensions(mm): 1040*600*900
  • Shape:
    • Pittsburgh Lock Roll-forming Machine
  • Model: HYJ04
  • Power (KW): 1.5
  • Sheet thickness (mm): 0.5-1.2
  • Weight (kg): 180
  • Dimensions(mm): 1040*600*1100
  • Shape:
    • Pittsburgh Lock Roll-forming Machine
  • Model: HYJ05
  • Power (KW): 1.5
  • Sheet thickness (mm): 0.5-1.2
  • Weight (kg): 180
  • Dimensions(mm): 1040*600*900
  • Shape:
    • Pittsburgh Lock Roll-forming Machine
  • Model: HYJ06
  • Power (KW): 1.5
  • Sheet thickness (mm): 0.5-1.2
  • Weight (kg): 190
  • Dimensions(mm): 1040*600*1100
  • Shape:
    • Pittsburgh Lock Roll-forming Machine
  • Model: HYJ07
  • Power (KW): 1.5
  • Sheet thickness (mm): 0.5-1.2
  • Weight (kg): 180
  • Dimensions(mm): 1040*600*900
  • Shape:
    • Pittsburgh Lock Roll-forming Machine
  • Model: HYJ08
  • Power (KW): 1.5
  • Sheet thickness (mm): 0.5-1.2
  • Weight (kg): 200
  • Dimensions(mm): 1040*600*900
  • Shape:
    • Pittsburgh Lock Roll-forming Machine
  • Model: HYJ09
  • Power (KW): 1.5
  • Sheet thickness (mm): 0.5-1.2
  • Weight (kg): 210
  • Dimensions(mm): 1040*600*900
  • Shape:
    • Pittsburgh Lock Roll-forming Machine
  • Model: HYJ10
  • Power (KW): 2.2
  • Sheet thickness (mm): 0.5-1.2
  • Weight (kg): 280
  • Dimensions(mm): 1230*660*1000
  • Shape:
    • Pittsburgh Lock Roll-forming Machine

We are highly specialized in manufacturing custom roll forming lines that conform to your demanding requests in steel construction industry. Our custom designed metal forming equipment can implement the process of typical shaped steel section fabrication and complex profile roll forming for various applications across construction, furniture, industrial and agricultural industries. Our expert engineering team has been in the field of structural steel manufacturing for a long term, they are committed to develop and custom engineering roll formers to fit your strict requirements.
