Curtain Rails

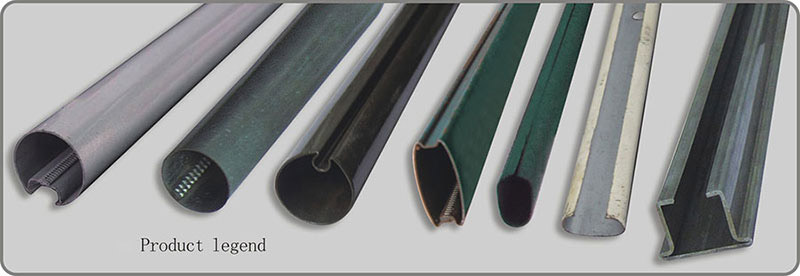

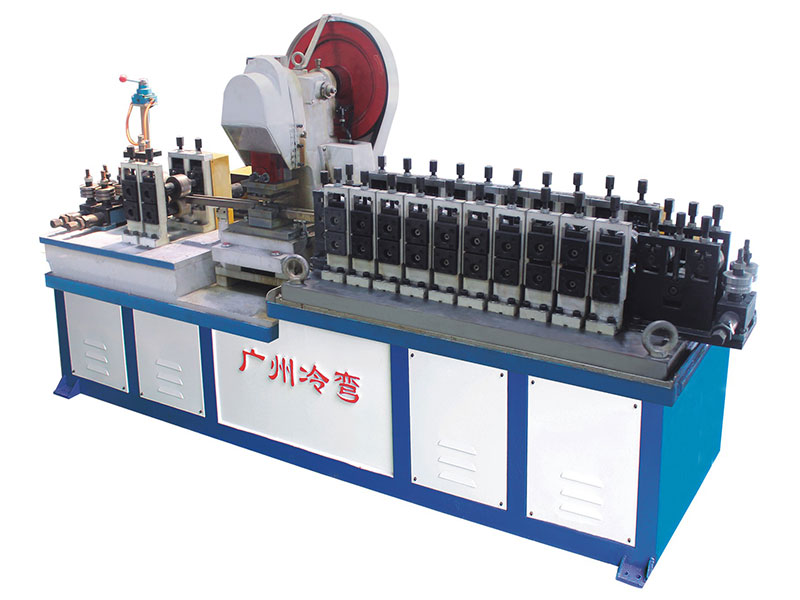

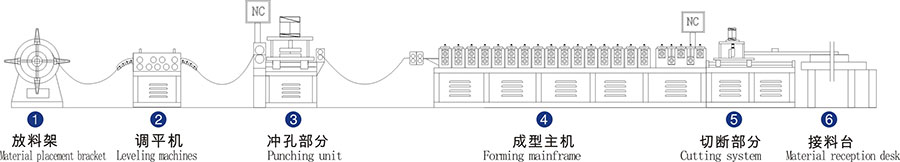

The roll-forming lines for curtain rails can be customized according to product shape. Both round and flat tube curtain rails are produced on our roll forming machines. The roll-forming production line consists of the material loader, roll-former, punching, and cutting device, allowing production of curtain tracks in different specifications.
| Forming material | 0.3-1.5mm cold/hot-rolled, galvanized, stainless steel strip |
| Forming passes | 8-36 |
| Production speed | 6~15m/min |
| Cut off | Hydraulic |
| Processing quality | Straightness: L≤2000mm, curvature≤2mm; deflection≤2º No surface wrinkles, bumps, scratches or other defects Cross-section size and hole position meet customer’s requirements or national standards |
| Remark: Custom solution is available according to client’s actual requirements. The data listed above is only for reference. | |
We are highly specialized in manufacturing custom roll forming lines that conform to your demanding requests in steel construction industry. Our custom designed metal forming equipment can implement the process of typical shaped steel section fabrication and complex profile roll forming for various applications across construction, furniture, industrial and agricultural industries. Our expert engineering team has been in the field of structural steel manufacturing for a long term, they are committed to develop and custom engineering roll formers to fit your strict requirements.
