Drawer Slides

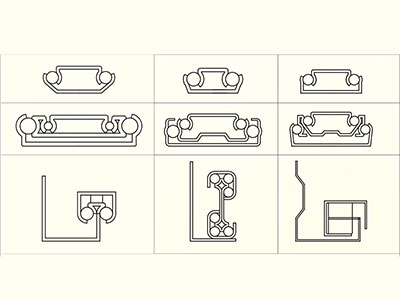

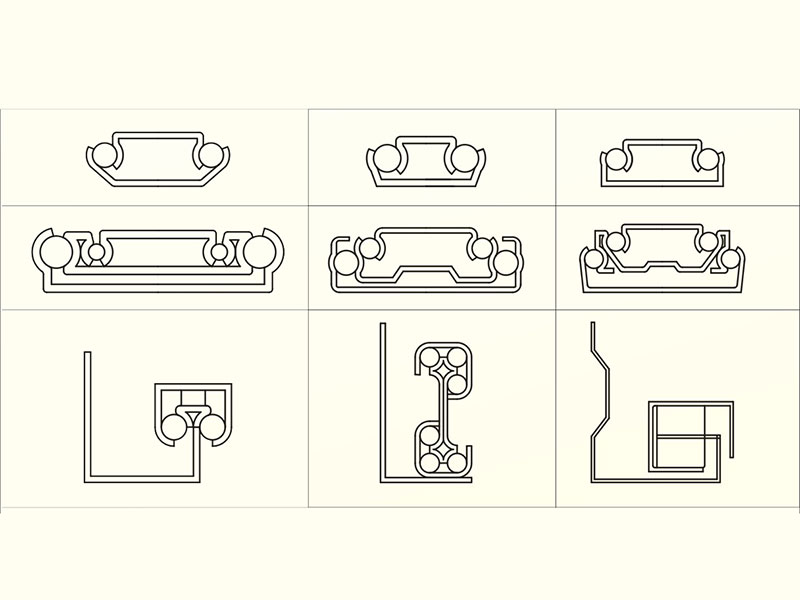

GZ Roll-Forming provides customers with roll forming systems for drawer slides. According to the drawer slide shape and material, we will provide different roll forming machine, satisfying different needs.

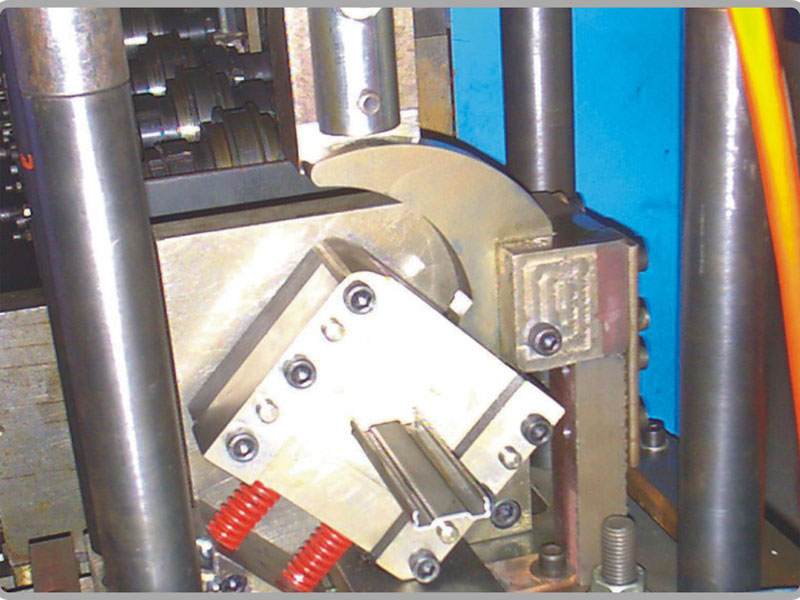

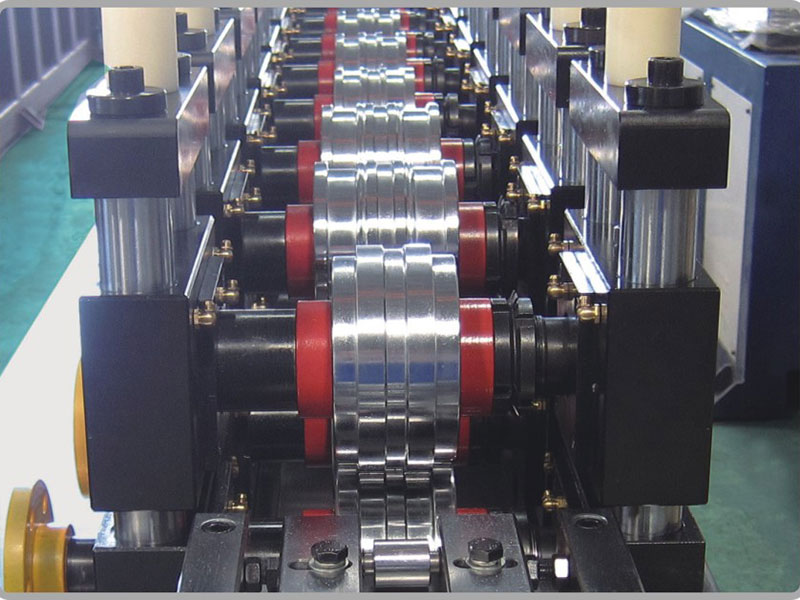

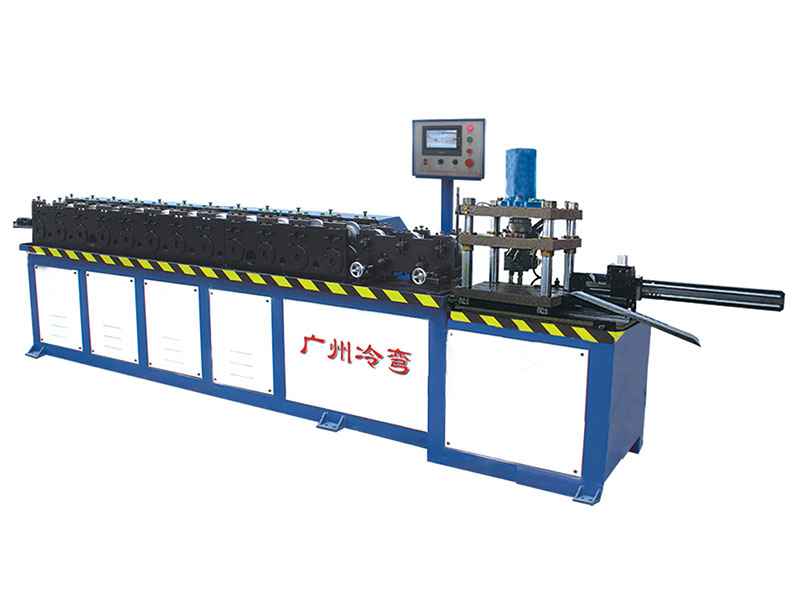

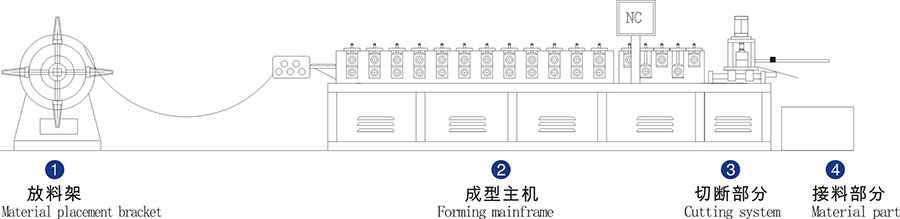

The roll forming line for drawer slides consists of the material loading unit, roll forming machine, hydraulic punching and cutting mechanism. The cut length is adjustable and with fully automatic production processes, production parameters and output are easily set on the touch screen.
| Forming material | 0.8-3mm cold/hot-rolled, galvanized, stainless steel strip |
| Forming passes | 10-20 |
| Production speed | 6~15m/min |
| Cut off | Hydraulic |
| Processing quality | Straightness: L≤2000mm, curvature≤2mm; deflection≤2º No surface wrinkles, bumps, scratches or other defects Cross-section size and hole position meet customer’s requirements or national standards |
| Remark: Custom design is available according to client’s actual requirements. The data listed above is only for reference. | |
We are highly specialized in manufacturing custom roll forming lines that conform to your demanding requests in steel construction industry. Our custom designed metal forming equipment can implement the process of typical shaped steel section fabrication and complex profile roll forming for various applications across construction, furniture, industrial and agricultural industries. Our expert engineering team has been in the field of structural steel manufacturing for a long term, they are committed to develop and custom engineering roll formers to fit your strict requirements.
