Shelves

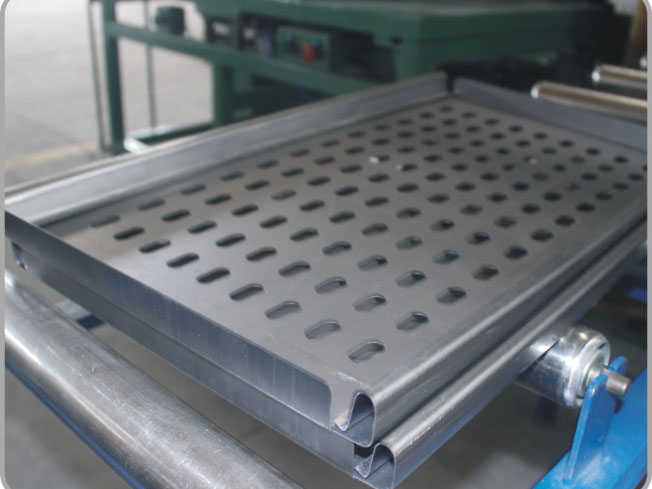

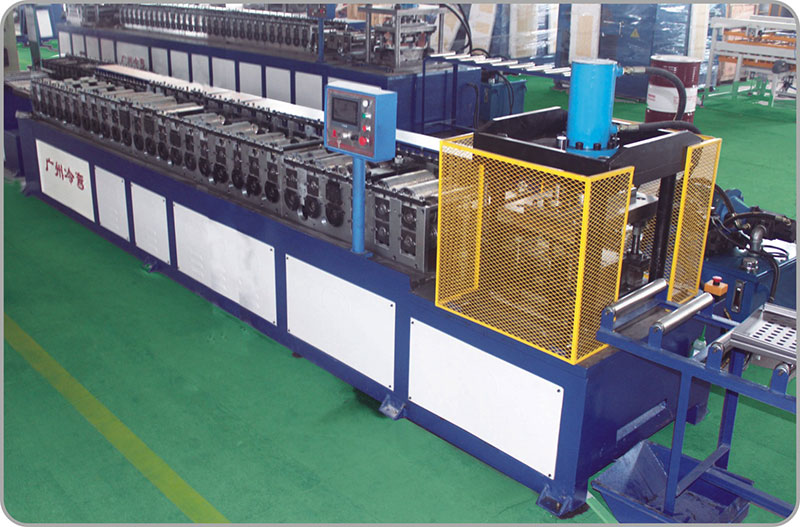

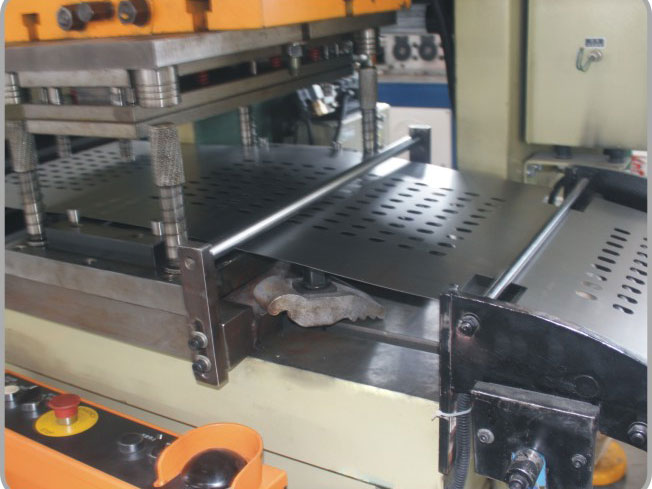

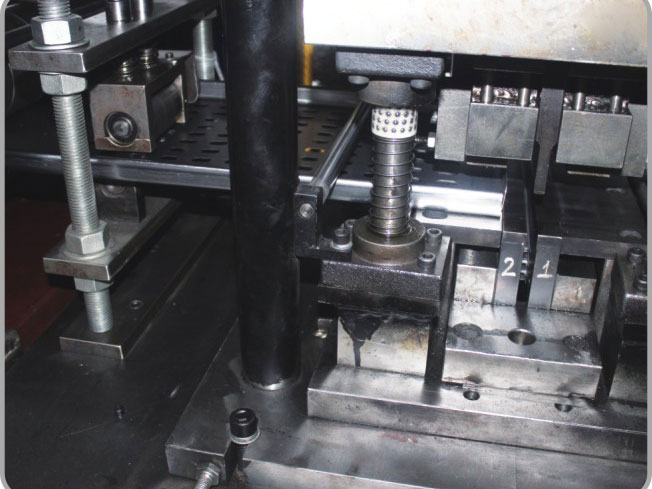

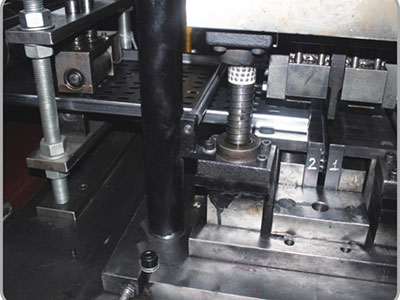

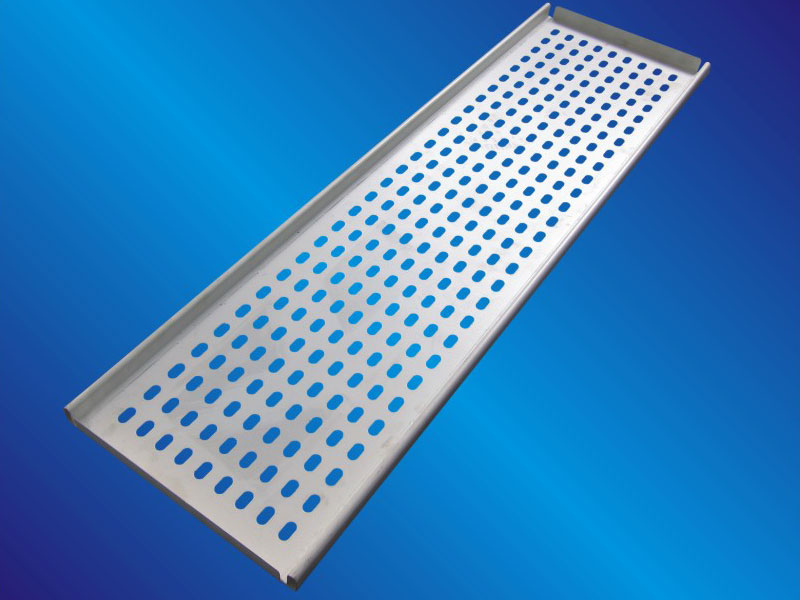

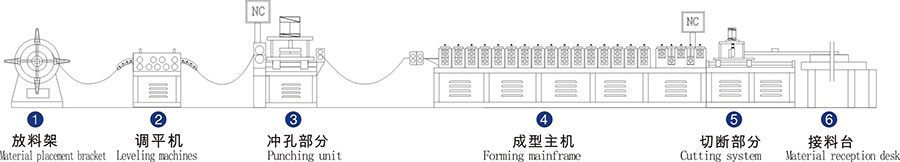

We offer roll-forming lines for shelves primarily used in supermarkets for goods display and storage. This fully automatic roll forming line requires only one operator, and shelves are formed in a single step, requiring no additional bending operations. The cut length of finished product is adjustable. This roll forming line consists of the material loader, levelling mechanism, punch press, roll former, cut off and bending mechanism.
| Forming material | 0.3-1mm cold/hot-rolled, galvanized, aluminum alloy and stainless steel metal strip |
| Forming passes | 10-32 |
| Production speed | 5~10m/min |
| Cut off | Hydraulic cut-to-length |
| Processing quality | Straightness: L≤2000mm, curvature≤2mm; deflection≤2º No surface wrinkles, bumps, scratches or other defects Cross-section size and hole position meet customer’s requirements or national standards |
| Remark: Custom design is available according to client’s actual requirements. The data listed above is only for reference. | |
We are highly specialized in manufacturing custom roll forming lines that conform to your demanding requests in steel construction industry. Our custom designed metal forming equipment can implement the process of typical shaped steel section fabrication and complex profile roll forming for various applications across construction, furniture, industrial and agricultural industries. Our expert engineering team has been in the field of structural steel manufacturing for a long term, they are committed to develop and custom engineering roll formers to fit your strict requirements.
